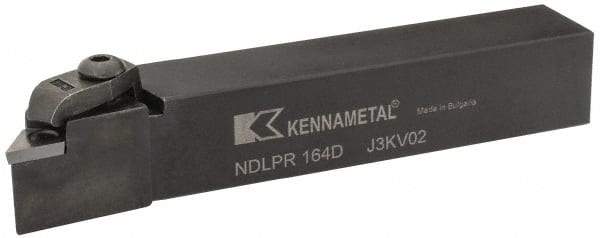

Kennametal - DP.., -5° Lead Angle NDLP External Right Hand Indexable Profiling Toolholder - 25.4mm Shank Height x 25.4mm Shank Width, 6" Long, Steel
Item #: 64922842
Brand: Kennametal
Model #: 1096944
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Rake | Positive |
| Insert Compatibility | DP.. |
| Toolholder Style | NDLP |
| Series | Top Notch |
| Toolholder Material | Steel |
| Through Coolant | No |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Insert Holding Method | Clamp |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Back of Bar to Cutting Edge (mm) | 31.75 |
| Head Length (mm) | 34.93 |
| Head Length (Decimal Inch) | 1.3800 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | DP.. 432 |
