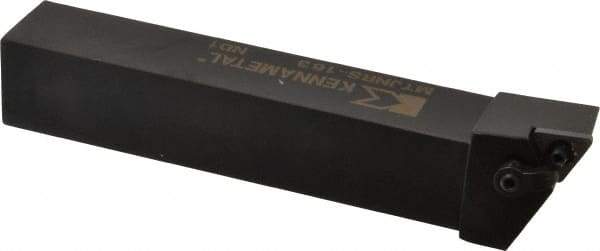

Kennametal - MTJN, Right Hand Cut, 3° Lead Angle, 1" Shank Height x 1" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, TN..33. Insert Compatibility, Series Kenloc
Item #: 64922776
Brand: Kennametal
Model #: 1096338
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | MTJN |
| Rake | Negative |
| Series | Kenloc |
| Lead Angle | 3 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | TN..33. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (mm) | 31.75 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (mm) | 28.45 |
| Head Length (Decimal Inch) | 1.1200 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
