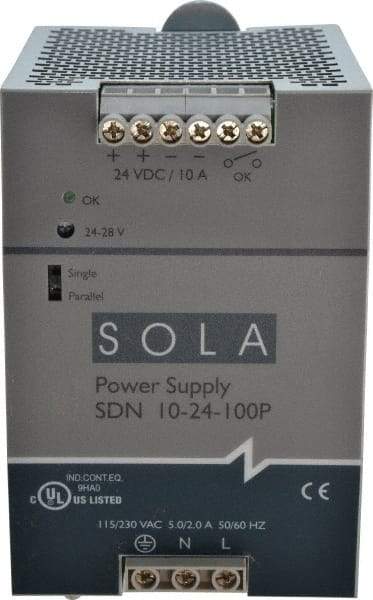

Sola/Hevi-Duty - 240 Watt, 10 Amp, 230 VAC Input, 24 VDC Output, DIN Rail Power Supply - 3.26 Inch Wide x 4.55 Inch Deep x 4.88 Inch High, Up to 88% Efficiency, 14 to 140°F, Green LED
Item #: 64911993
Brand: Sola/Hevi-Duty
Model #: SDN10-24-100P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Type | DIN Rail |
| Output Wattage | 240 |
| Maximum Input Voltage | 230 VAC |
| Minimum Input Voltage | 115 VAC |
| Output Voltage | 24 VDC |
| Output Amperage | 10 |
| Number of Phases | 1 |
| Hold-up Time (ms) | 20 |
| Efficiency | >88% |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | 14 |
| Ingress Protection Rating | IP20 |
| Status Indicator | Green LED |
| Overall Height (mm) | 124 |
| Overall Height (Decimal Inch) | 4.8800 |
| Overall Width (mm) | 83 |
| Overall Width (Decimal Inch) | 3.2600 |
| Overall Depth (mm) | 116 |
| Overall Depth (Decimal Inch) | 4.5500 |
| Protection Features | Over Temperature Protection |
| Standards Met | CE; cULus Listed; RoHS Compliant |
