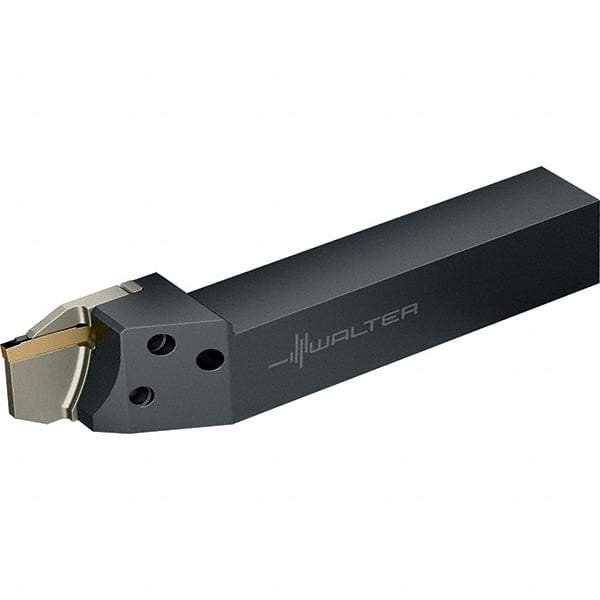

Walter - External Thread, 0.827" Max Depth of Cut, 6.366" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, GX24-3.. Insert Style, NCBE Toolholder Style
Item #: 64895956
Brand: Walter
Model #: 5028898
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Overall Length (Decimal Inch) | 6.3660 |
| Toolholder Style | NCBE |
| Insert Compatibility | GX24-3.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2360 |
| Complete Insert Compatibility | GX24-3E400N02-CF5; GX24-3E400N030-CE4; GX24-3E400N03-CE4; GX24-3E400N040-GD3; GX24-3E400N040-UA4; GX24-3E400N040-UF4; GX24-3E400N04-GD3; GX24-3E400N04-GD6; GX24-3E400N04-UD6; GX24-3E400N04-UF4; GX24-3E400N080-UF4; GX24-3E400N08-UF4; GX24-3E400N200-RD4 |
