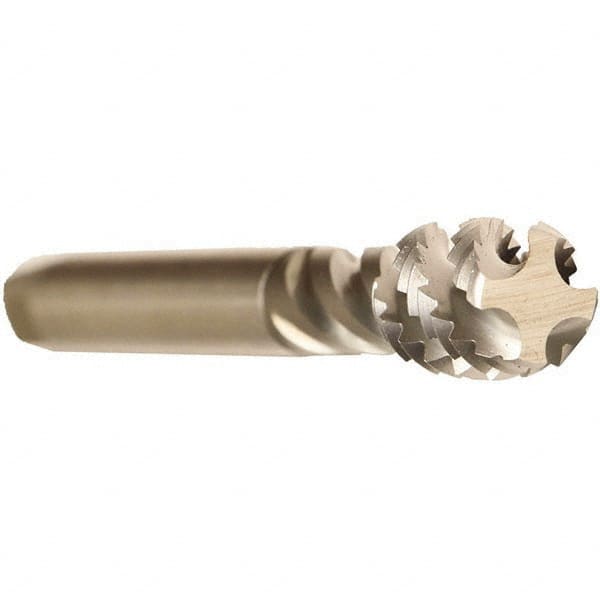

Emuge - M10x1.50 Metric Coarse, 5 Flute, 45° Helix, Bottoming Chamfer, Bright Finish, Cobalt Spiral Flute STI Tap - Right Hand Flute, 3-15/16" OAL, 0.3543" Shank Diam, 0.5906" Thread Length, 6H (mod) Class of Fit, Series Enorm Z
Item #: 64892342
Brand: Emuge
Model #: C0513500.0975
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M10x1.50 |
| Class of Fit | 6H (mod) |
| Number of Flutes | 5 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Helix Angle | 45 |
| Thread Standard | Metric Coarse |
| Material | Cobalt |
| Flute Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.5906 |
| Thread Length (mm) | 15.00 |
| Series/List | Enorm Z |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.00 |
