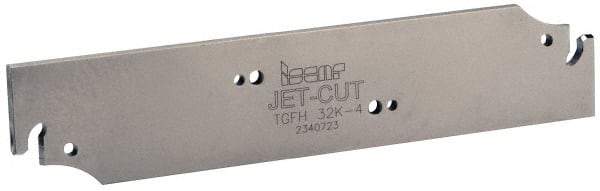

Iscar - 1.26" Blade Height, 0.134" Blade Width, 5-29/32" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 64890577
Brand: Iscar
Model #: 2392363
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (mm) | 3.40 |
| Blade Width (Decimal Inch) | 0.1340 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9060 |
| Blade Style | TGFH |
| Insert Style | TAG 4.. |
| Insert Width (mm) | 3.70 |
| Insert Width (Decimal Inch) | 0.1457 |
| Series | Tang-Grip |
| Insert Seat Size | 3.4 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 3.9400 |
| Cutting Height (mm) | 24.80 |
| Cutting Height (Decimal Inch) | 0.9764 |
| Minimum Insert Width (mm) | 3.70 |
| Minimum Insert Width (Decimal Inch) | 0.1457 |
| Maximum Insert Width (mm) | 4.50 |
| Maximum Insert Width (Decimal Inch) | 0.1770 |
| Complete Insert Compatibility | TAG L5C-4D; TAG L5J-4D; TAG N4.8C; TAG N4A; TAG N5C; TAG N5J; TAG N5JT; TAG N5UT; TAG R5C-4D; TAG R5J-4D |
| Complete Tool Block/Toolholder Style Compatibility | C..TBK..,HS..TBK..,IM..TBK..,SGT.. |
| Manufacturers Catalog Number | TGFH 32K-4 |
