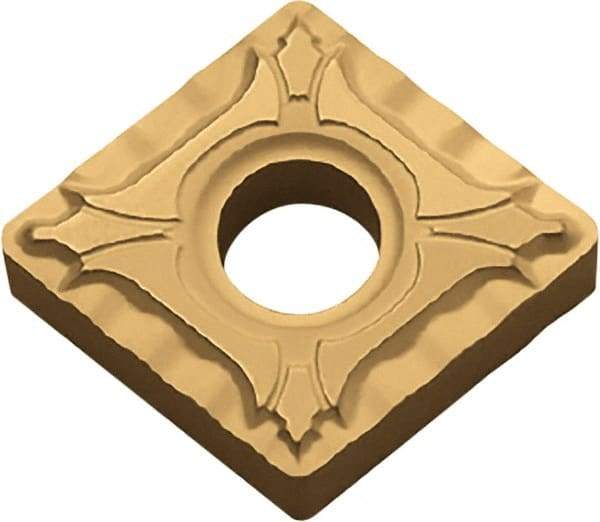

Kyocera - CNMG432 XP Grade CA5515 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 64874233
Brand: Kyocera
Model #: 8818546
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | CA5515 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | XP |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNMG120408XP |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CA5 |
| Insert Holding Method | Screw |
| Shape | Diamond |
