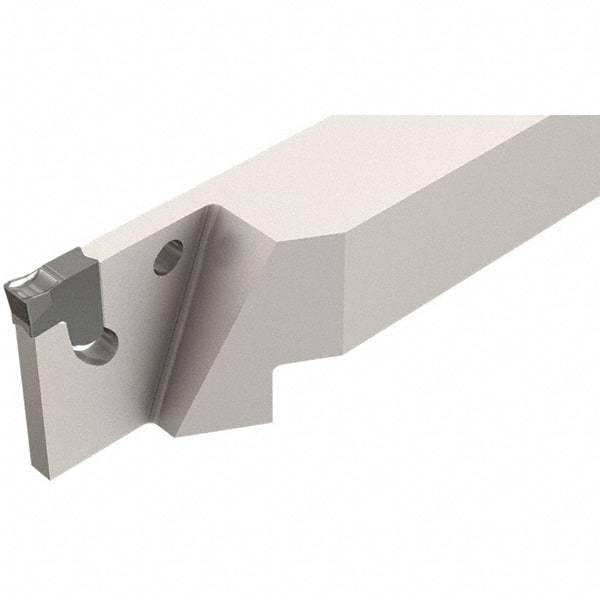

Iscar - External Thread, 0.5906" Max Depth of Cut, 1.4mm Min Groove Width, 140mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-Grip
Item #: 64853740
Brand: Iscar
Model #: 2302363
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Minimum Groove Width (Decimal Inch) | 0.0550 |
| Minimum Groove Width (mm) | 1.40 |
| Maximum Groove Width (Decimal Inch) | 0.0600 |
| Overall Length (Decimal Inch) | 5.5118 |
| Overall Length (mm) | 140.00 |
| Series | Tang-Grip |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Complete Insert Compatibility | TAG N-C/W/M; TAG N-J/JS/JT; TAG R/L-J/JS |
