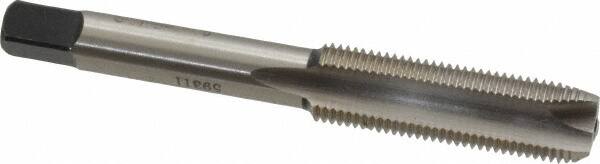

Heli-Coil - 3/8-24 UNF, H2, 3 Flutes, Plug Chamfer, Bright Finish, High Speed Steel Spiral Point STI Tap - 3-5/32" OAL, 0.323" Shank Diam, 1-7/16" Thread Length, 13/32" Square Length, 0.242" Square Size, 3B Class of Fit
Item #: 64833320
Brand: Heli-Coil
Model #: 6FSB
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-24 |
| Class of Fit | 3B |
| Thread Limit | H2 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Finish/Coating | Bright |
| Overall Length (Inch) | 3-5/32 |
| Thread Standard | UNF |
| Material | High Speed Steel |
| Thread Length (Inch) | 1-7/16 |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Square Length (Inch) | 13/32 |
| Square Size (Decimal Inch) | 0.2420 |
