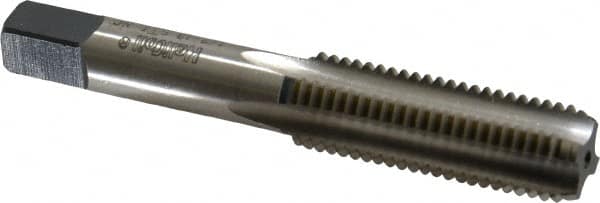

Heli-Coil - 1/2-13 UNC, H3, 4 Flute, Bottoming Chamfer, Bright Finish, High Speed Steel Hand STI Tap - 3-13/16" OAL, 1-13/16" Thread Length, 9/16" Square Length, 0.36" Square Size, 3B Class of Fit
Item #: 64831514
Brand: Heli-Coil
Model #: 8CBB
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/2-13 |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Overall Length (Inch) | 3-13/16 |
| Thread Standard | UNC |
| Thread Length (Inch) | 1-13/16 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Length (Inch) | 9/16 |
| Square Size (Decimal Inch) | 0.3600 |
| Material | High Speed Steel |
