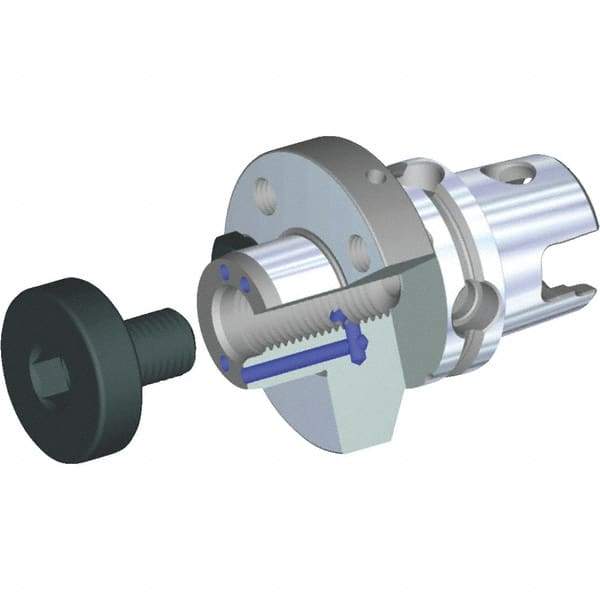

Kennametal - KM80TS Modular Connection 1-1/2" Pilot Diam Shell Mill Holder - 1.575" Flange to Nose End Projection, 3.386" Nose Diam, 3/4-16 Lock Screw, Through-Spindle Coolant
Item #: 64677818
Brand: Kennametal
Model #: 3670511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | KM80TS |
| Pilot Diameter (Inch) | 1-1/2 |
| Pilot Diameter (Decimal Inch) | 1.5000 |
| Projection Flange to Nose End (Decimal Inch) | 1.5750 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 3.3860 |
| Coolant Type | Through-Spindle |
| Lock Screw Thread Size | 3/4-16 |
