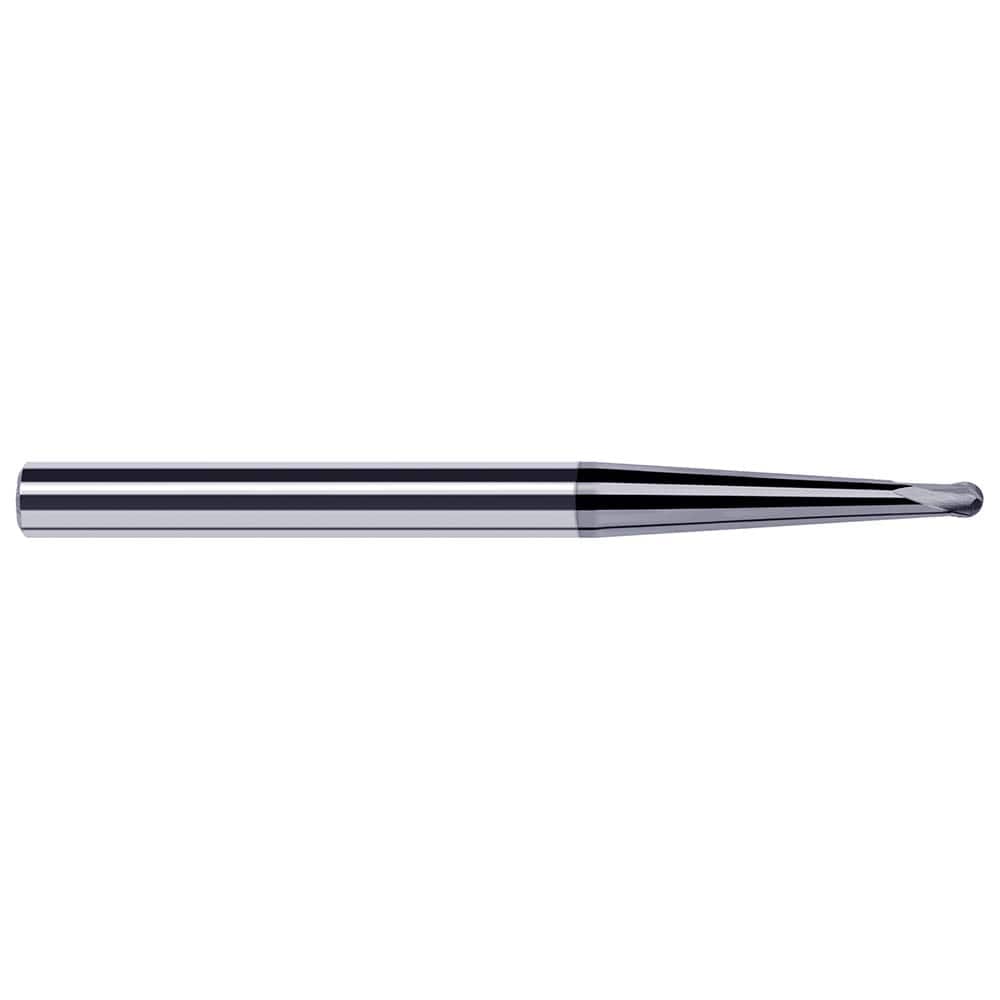

Ball End Mill: 0.015″ Dia, 0.012″ LOC, 2 Flute, Solid Carbide 2-1/2″ OAL, 3/16″ Shank Dia, 35 ° Helix, AlTiN Coated, Single End
Item #: 64604416
Brand: Harvey Tool
Model #: 66643-C6
Product Specifications
| Mill Diameter (Inch) | 1/64 |
| Mill Diameter (Decimal Inch) | 0.0150 |
| Length of Cut (mm) | 0.30 |
| End Mill Material | Solid Carbide |
| Helix Angle | 35 |
| Length Of Cut Range (Decimal Inch) | 0.0000 to 0.0500 |
| Variable Helix | No |
| Helix Style | High |
| Shank Diameter (Inch) | 3/16 |
| Reach Length (Decimal Inch) | 0.4910 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0120 |
