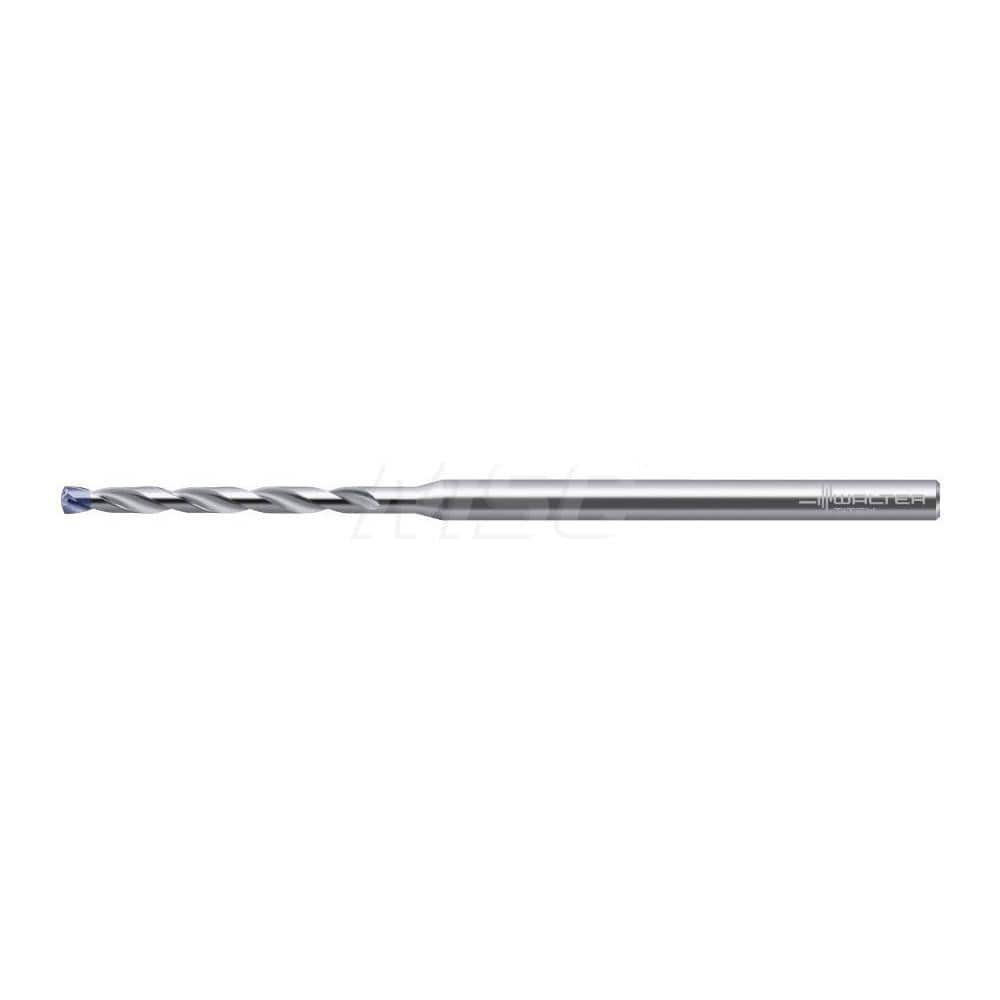

Micro Drill Bit: 0.0965″ Dia, 140 °, Solid Carbide AlTiN Finish, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series A6489AMP & A6589AMP
Item #: 64598394
Brand: Walter-Titex
Model #: 5932203
Product Specifications
| Drill Bit Size (mm) | 2.45 |
| Drill Bit Size (Decimal Inch) | 0.0965 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 29.00 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 25.00 |
| Series | A6489AMP; A6589AMP |
| Overall Length (mm) | 67.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-treme DM |
| Tool Application | Through Hole Drilling; Blind Hole; Stack Drilling |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | m7 |
| Primary Workpiece Material | Titanium Alloy |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Glass; Graphite |
| Secondary Workpiece Material Code | H; O |
| Standards | DIN 6535 HA |
| Shank Diameter (mm) | 3.00 |
| Shank Length (mm) | 34.00 |
| Flute By Diameter Ratio | 8xD |
| Material Grade | K30F |
| Spiral Type | Regular |
