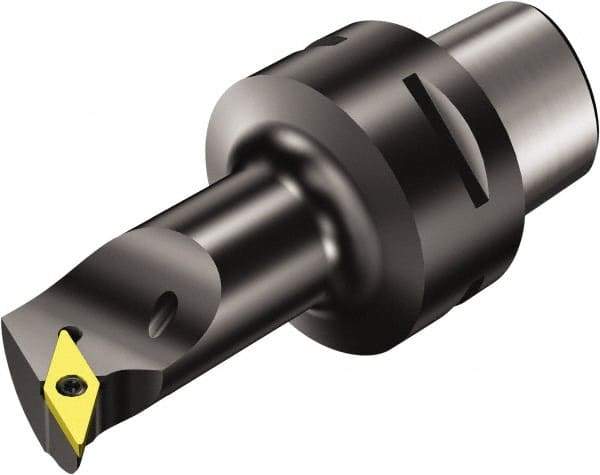

Sandvik Coromant - Left Hand Cut, Size C5, VBMT 221 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 15mm Ctr to Cutting Edge, 80mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 64575533
Brand: Sandvik Coromant
Model #: 5728760
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 80.00 |
| Head Length/Projection (Decimal Inch) | 3.1496 |
| Insert Style | VBMT 221 |
| Center to Cutting Edge (mm) | 15.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5906 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 27.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.0630 |
| Center to Cutting Height (mm) | 56.00 |
| Center to Cutting Height (Decimal Inch) | 2.2047 |
| Complete Insert Compatibility | VBMT 11 03 04 |
