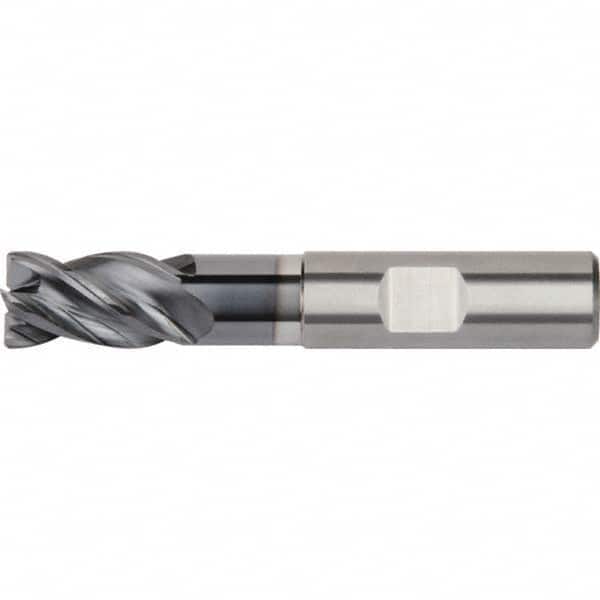

Kennametal - 1" Diam 4 Flute Solid Carbide 0.12" Corner Radius End Mill
Item #: 12257739
Brand: Kennametal
Model #: 6767897
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.1200 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 1-1/8 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 5-1/2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 36.00 |
| Variable Index | No |
| Variable Helix | No |
| Reach Length (Inch) | 3-1/4 |
| Neck Diameter (Decimal Inch) | 0.9400 |
| Material Grade | KCSM15 |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Series/List | H1TE |
