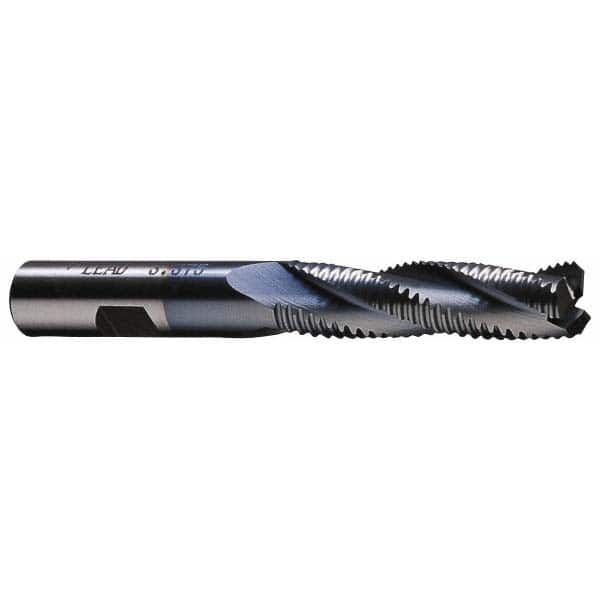

Corner Chamfer End Mill: 0.375″ Dia, 0.75″ LOC, 4 Flute, Cobalt 2-1/2″ OAL, 3/8″ Shank Dia, 30 ° Helix, TiCN Coated, Centercutting
Item #: 64440878
Brand: Cleveland
Model #: C31295
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (mm) | 0.375 in |
| Mill Diameter (Decimal Inch) | 0.3750; 0.375 in |
| Number of Flutes | 4 |
| Pitch | Coarse |
| Length of Cut (Inch) | 3/4 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/8; 3/8 in |
| Shank Diameter (mm) | 3/8 in |
| Shank Diameter (Decimal Inch) | 3/8 in |
| Material | Cobalt |
| Finish/Coating | TiCN |
| Overall Length (mm) | 2.5 in |
| Overall Length (Inch) | 2-1/2; 2.5 in |
| Centercutting | Yes; Center Cutting |
| Helix Angle | 30.00 |
| Extended Reach | No |
| Chamfer Angle | 45 |
| Material Grade | M42 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.5000; 2.5 in |
| Series/List | RG8 |
