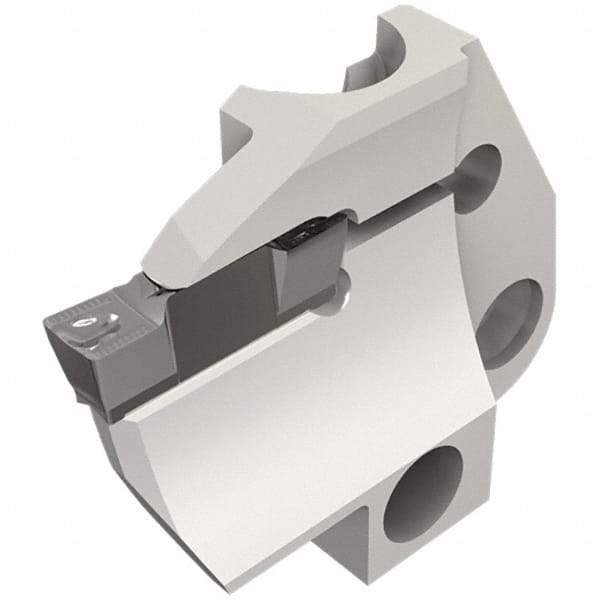

Iscar - 5mm Groove Width, 14mm Max Depth of Cut, Left Hand Cut, HFPAD Indexable Grooving Blade - HFPR/L Insert Style, Series Modular Grip
Item #: 64249394
Brand: Iscar
Model #: 2550140
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Blade Style | HFPAD |
| Series | Modular Grip |
| Minimum Workpiece Diameter (mm) | 50.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 1.9685 |
| Maximum Workpiece Diameter (mm) | 75.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.9528 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 6.30 |
| Blade Width (Decimal Inch) | 0.2480 |
| Overall Length (mm) | 40.50 |
| Overall Length (Decimal Inch) | 1.5945 |
| Insert Style | HFPR/L |
