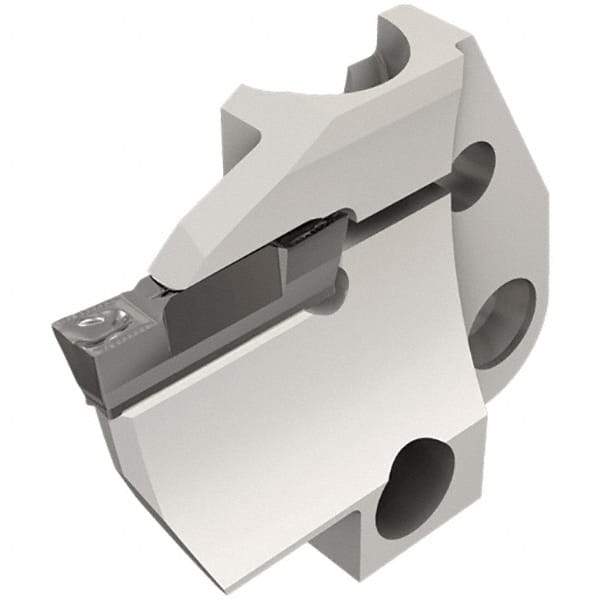

Iscar - 4mm Groove Width, 10mm Max Depth of Cut, Left Hand Cut, HFPAD Indexable Grooving Blade - DGN/DGNC/DGNM-C, DGNM-J/JS/JT, DGN-UT/UA, GRIP, HFPR/L, HGPL Insert Style, Series Modular Grip
Item #: 64249287
Brand: Iscar
Model #: 2550129
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Blade Style | HFPAD |
| Series | Modular Grip |
| Minimum Workpiece Diameter (mm) | 25.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 0.9843 |
| Maximum Workpiece Diameter (mm) | 31.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2205 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 5.80 |
| Blade Width (Decimal Inch) | 0.2283 |
| Overall Length (mm) | 40.50 |
| Overall Length (Decimal Inch) | 1.5945 |
| Insert Style | DGN/DGNC/DGNM-C; DGNM-J/JS/JT; DGN-UT/UA; GRIP; HFPR/L; HGPL |
