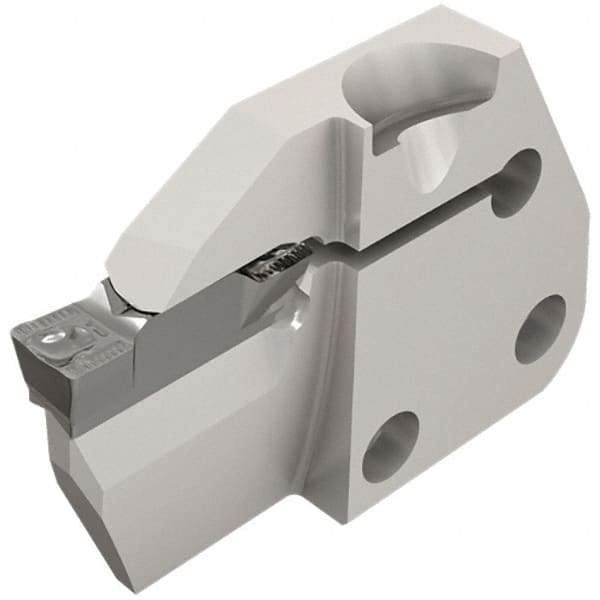

Iscar - 6mm Groove Width, 20mm Max Depth of Cut, Left Hand Cut, HFPAD Indexable Grooving Blade - HFPR/L Insert Style, Series Modular Grip
Item #: 64249188
Brand: Iscar
Model #: 2550119
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Blade Style | HFPAD |
| Series | Modular Grip |
| Minimum Workpiece Diameter (mm) | 100.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 3.9370 |
| Maximum Workpiece Diameter (mm) | 200.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 7.8740 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 6.80 |
| Blade Width (Decimal Inch) | 0.2677 |
| Overall Length (mm) | 45.50 |
| Overall Length (Decimal Inch) | 1.7913 |
| Insert Style | HFPR/L |
