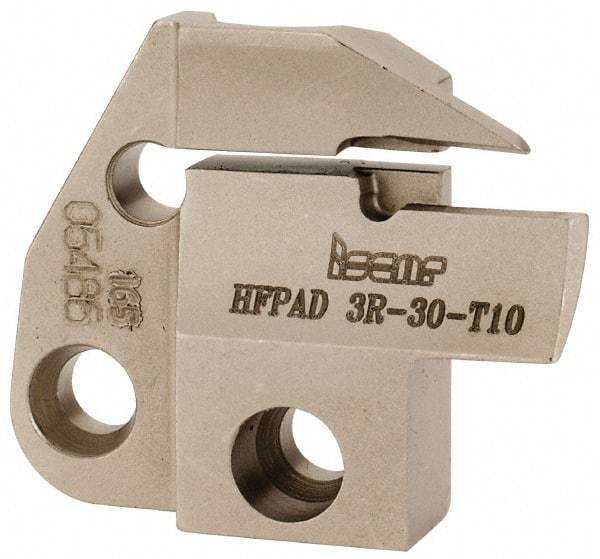

Iscar - 3mm Groove Width, 10mm Max Depth of Cut, Right Hand Cut, HFPAD Indexable Grooving Blade - GRIP, HGN-C, HGN-J, HGN-UT, HGPL Insert Style, Series Modular Grip
Item #: 64249113
Brand: Iscar
Model #: 2550112
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Blade Style | HFPAD |
| Series | Modular Grip |
| Minimum Workpiece Diameter (mm) | 30.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 1.1811 |
| Maximum Workpiece Diameter (mm) | 40.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5748 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 5.80 |
| Blade Width (Decimal Inch) | 0.2283 |
| Overall Length (mm) | 39.50 |
| Overall Length (Decimal Inch) | 1.5551 |
| Insert Style | GRIP; HGN-C; HGN-J; HGN-UT; HGPL |
