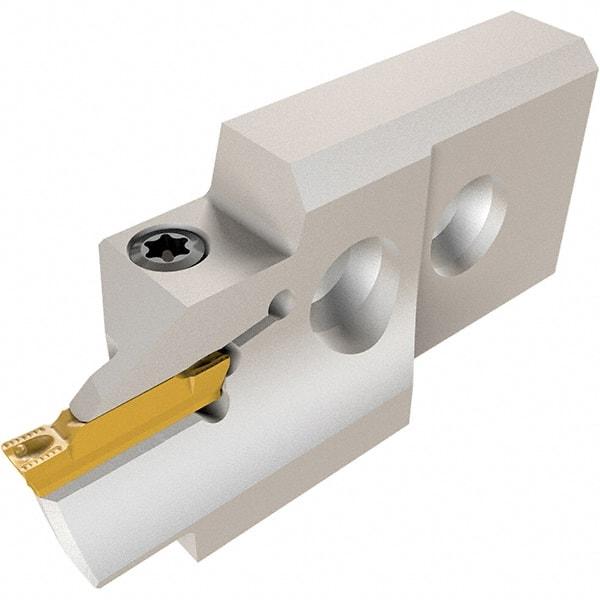

Iscar - 3" Groove Width, 9mm Max Depth of Cut, Left Hand Cut, HGAE Indexable Grooving Blade - HGPL Insert Style, Series Heliface
Item #: 64249071
Brand: Iscar
Model #: 2550100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Blade Style | HGAE |
| Series | Heliface |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 55.00 |
| Overall Length (Decimal Inch) | 2.1654 |
| Insert Style | HGPL |
| Complete Insert Compatibility | HGPL 3002Y; HGPL 3003Y; HGPL 3015Y |
