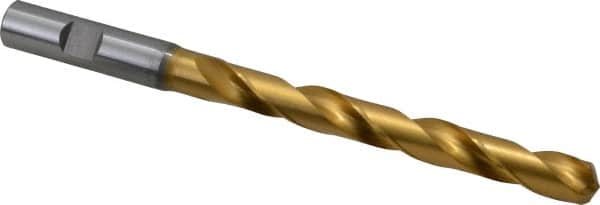

OSG - 29/64" 130° Cobalt Jobber Drill - TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 6-9/32" OAL, Standard Point
Item #: 64184021
Brand: OSG
Model #: 15453105
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 29/64 |
| Drill Bit Size (Decimal Inch) | 0.4531 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 4-3/16 |
| Flute Length (Decimal Inch) | 4.1875 |
| Overall Length (Decimal Inch) | 6.2813 |
| Overall Length (Inch) | 6-9/32 |
| Point Type | Standard |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Spiral Type | Regular Spiral |
| Shank Length (Inch) | 1-25/32 |
| Web Configuration | Tapered |
| Drill Bit Grade | High Performance |
| Series/List | 1500 |
