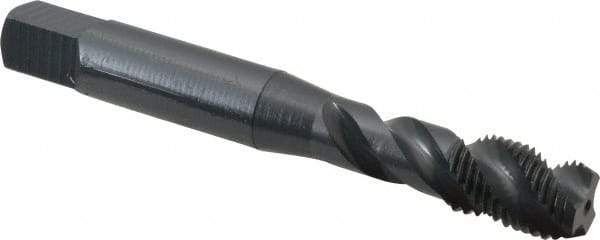

OSG - 5/16-24 UNF, 3 Flute, 45° Helix, Modified Bottoming Chamfer, Oxide Finish, Vanadium High Speed Steel Spiral Flute STI Tap - Right Hand Flute, 2-23/32" OAL, 0.318" Shank Diam, 1-1/8" Thread Length, Series 302
Item #: 64180987
Brand: OSG
Model #: 1714501
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/16-24 |
| Thread Limit | H2 |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Finish/Coating | Oxide |
| Overall Length (Inch) | 2-23/32 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Material | Vanadium High Speed Steel |
| Flute Direction | Right Hand |
| Thread Length (Inch) | 1-1/8 |
| Series/List | 302 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Material Application | Carbon Steel; Hardened Steel; Stainless Steel |
