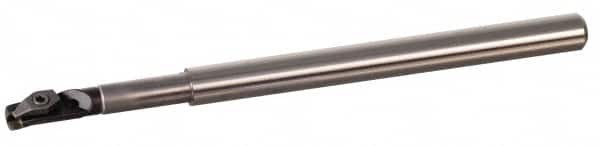

Kennametal - 6.35mm Min Bore Diam, 3.938" OAL, 1/4" Shank Diam, E-KBLP Indexable Boring Bar - 1.22" Max Bore Depth, BP.. Insert, Clamp Holding Method
Item #: 64163959
Brand: Kennametal
Model #: 1131898
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-KBLP |
| Series | Kendex Mini |
| Minimum Bore Diameter (mm) | 6.35 |
| Minimum Bore Diameter (Decimal Inch) | 0.2500 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.2200 |
| Overall Length (Decimal Inch) | 3.9380 |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Insert Compatibility | BP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.1280 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 1.52 |
| Coolant Hole Diameter (Decimal Inch) | 0.0600 |
| Complete Insert Compatibility | BP.. 030202L |
| Toolholder Material | Carbide |
