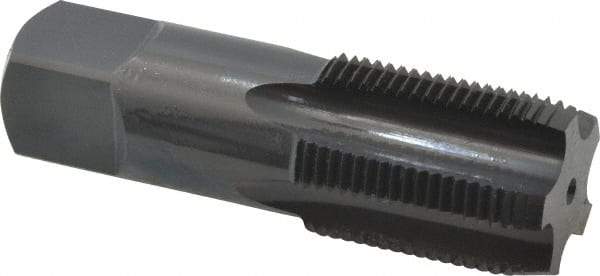

OSG - 3/4-14 NPS Thread, 5 Flute Standard Pipe Tap - 3-1/4" OAL, 1-3/8" Thread Length, 29/32" Shank Diam, Oxide Finish, High Speed Steel
Item #: 64159791
Brand: OSG
Model #: 1330601
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Thread Size | 3/4-14 |
| Thread Standard | NPS |
| Material | High Speed Steel |
| Finish/Coating | Oxide |
| Number of Flutes | 5 |
| Overall Length (Inch) | 3-1/4 |
| Hook | Regular |
| Thread Length (Inch) | 1-3/8 |
| Shank Diameter (Decimal Inch) | 0.9063 |
| Square Size (Decimal Inch) | 0.6790 |
| Chamfer | 4 to 5 |
