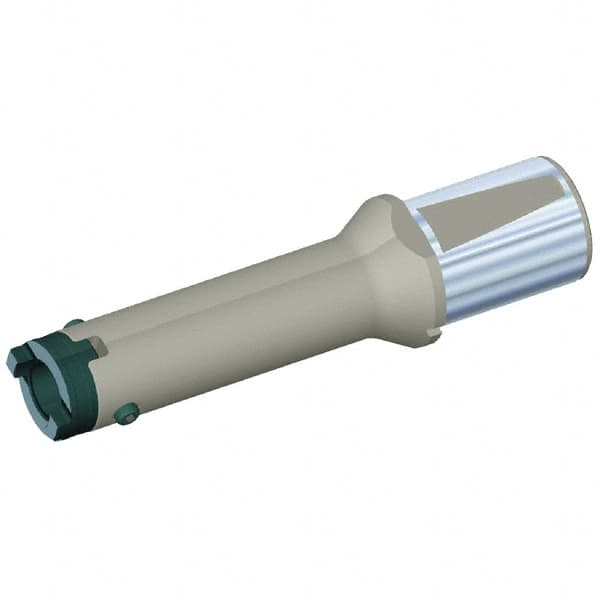

Kennametal - Series HTS, Head Connection 32, 50mm Shank Diam, Drill Body - 254mm Drill Body Length to Flange, 5.34 Toolholder, 58mm Nose Diam, 382mm OAL, 314mm Drill Body Length, Whistle Notch Shank, Through Coolant
Item #: 64103047
Brand: Kennametal
Model #: 1134482
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 32 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 254.00 |
| Toolholder Style | 5.34 |
| Nose Diameter (mm) | 58.00 |
| Nose Diameter (Decimal Inch) | 2.2835 |
| Overall Length (mm) | 382.00 |
| Overall Length (Decimal Inch) | 15.0394 |
| Gage Length (mm) | 314.00 |
| Gage Length (Decimal Inch) | 12.3622 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 68.00 |
| Through Coolant | Through Coolant |
| Includes | Clamping screw; Drive Ring; Side Pipe Plug |
