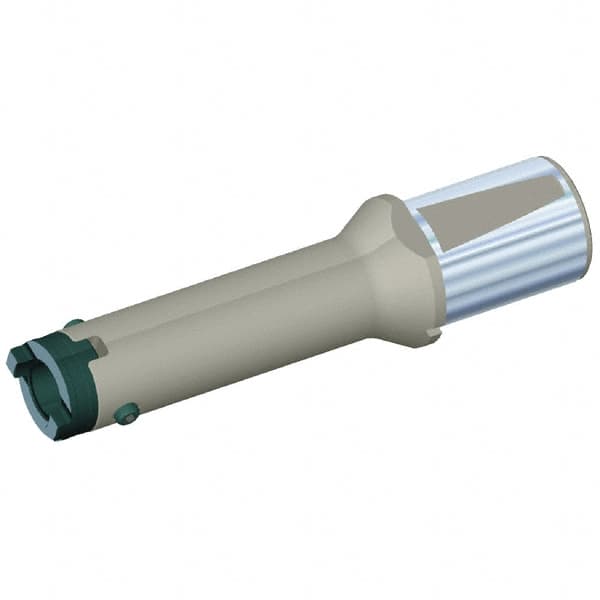

Kennametal - Series HTS, Head Connection 27, 50mm Shank Diam, Drill Body - 267mm Drill Body Length to Flange, 5.34 Toolholder, 48mm Nose Diam, 380mm OAL, 312mm Drill Body Length, Whistle Notch Shank, Through Coolant
Item #: 64103021
Brand: Kennametal
Model #: 1134464
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 27 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 267.00 |
| Toolholder Style | 5.34 |
| Nose Diameter (mm) | 48.00 |
| Nose Diameter (Decimal Inch) | 1.8898 |
| Overall Length (mm) | 380.00 |
| Overall Length (Decimal Inch) | 14.9606 |
| Gage Length (mm) | 312.00 |
| Gage Length (Decimal Inch) | 12.2835 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 68.00 |
| Through Coolant | Through Coolant |
| Includes | Clamping screw; Drive Ring; Side Pipe Plug |
