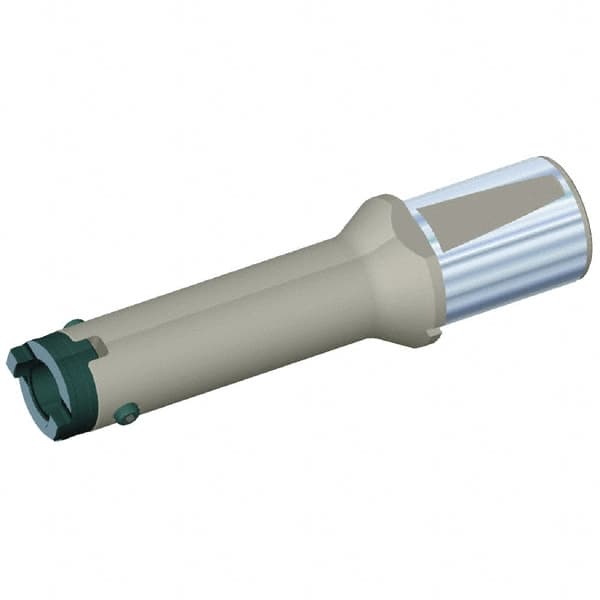

Kennametal - Series HTS, Head Connection 22, 50mm Shank Diam, Drill Body - 417mm Drill Body Length to Flange, 5.34 Toolholder, 40mm Nose Diam, 530mm OAL, 462mm Drill Body Length, Whistle Notch Shank, Through Coolant
Item #: 64102882
Brand: Kennametal
Model #: 1129378
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HTS |
| Head Connection Size | 22 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 417.00 |
| Toolholder Style | 5.34 |
| Nose Diameter (mm) | 40.00 |
| Nose Diameter (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 530.00 |
| Overall Length (Decimal Inch) | 20.8661 |
| Gage Length (mm) | 462.00 |
| Gage Length (Decimal Inch) | 18.1890 |
| Shank Type | Whistle Notch |
| Shank Length (mm) | 68.00 |
| Through Coolant | Through Coolant |
| Includes | Clamping screw; Drive Ring; Side Pipe Plug |
