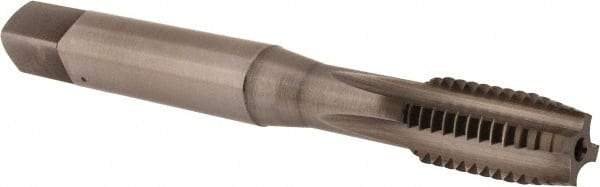

OSG - M8x1.25 Metric Coarse 6H 4 Flute Nitride Finish Vanadium High Speed Steel Straight Flute Machine Tap - Plug, Right Hand Thread, 2-23/32" OAL, 1-1/8" Thread Length, D5 Limit, Oversize
Item #: 64046626
Brand: OSG
Model #: 2411103
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Vanadium High Speed Steel (HSSE) is made of high speed steel, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used on stainless steels and high silicon aluminums.
Nitride is a thin, hard-shell coating that supports the surface hardness of the tool. It is used where abrasive or wearing conditions exist.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M8x1.25 |
| Class of Fit | 6H |
| Thread Limit | D5 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | Vanadium High Speed Steel |
| Finish/Coating | Nitride |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Inch) | 2-23/32 |
| Oversize | No |
| Series/List | 241 |
| Thread Length (Inch) | 1-1/8 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Size (Decimal Inch) | 0.2380 |
| Material Application | Aluminum; Cast Iron |
