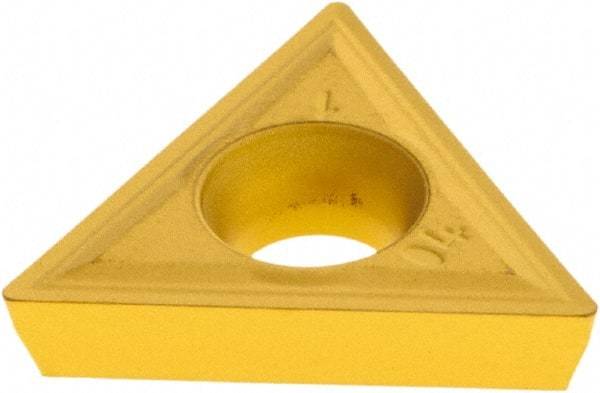

Iscar - TPMT321 Grade IC9150 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 63994834
Brand: Iscar
Model #: 5507647
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 321 |
| Material | Carbide |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IC9150 |
| Coating | TiCN/Al2O3/TiN |
| Hole Diameter (mm) | 4.30 |
| Hole Diameter (Decimal Inch) | 0.1693 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Shape | Triangle |
