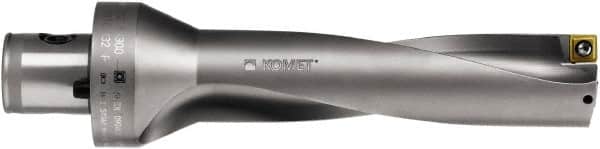

Komet - 3.661" Max Drill Depth, 3xD, 1-7/32" Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 63908784
Brand: Komet
Model #: U1153090
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U11 |
| Drill Diameter (Inch) | 1-7/32 |
| Drill Diameter (Decimal Inch) | 1.2188 |
| Maximum Drill Depth (Decimal Inch) | 3.6610 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2380 |
| Overall Length/Projection (Decimal Inch) | 5.2360 |
| Insert Compatibility | SOEX 090408 |
| Body Length (Decimal Inch) | 5.2360 |
| Series | KUB Quatron |
