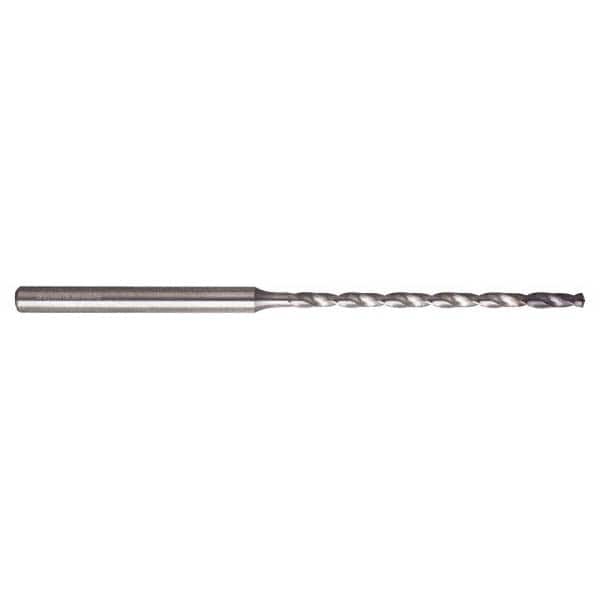

Micro Drill Bit: 0.063″ Dia, 135 °, Solid Carbide TiAlN Finish, RH Cut, Straight-Cylindrical Shank, Series 6412
Item #: 63897011
Brand: Guhring
Model #: 9064120016000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0630 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 29.00 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 135 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 27.40 |
| Series | 6412 |
| Overall Length (mm) | 62.00 |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | h7 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum; Titanium Alloy |
| Secondary Workpiece Material Code | S; N |
| Shank Diameter (mm) | 4.00 |
| Shank Length (mm) | 33.00 |
| Flute By Diameter Ratio | 15xD |
| Material Grade | Submicron |
| Drill Bit Grade | High Performance |
