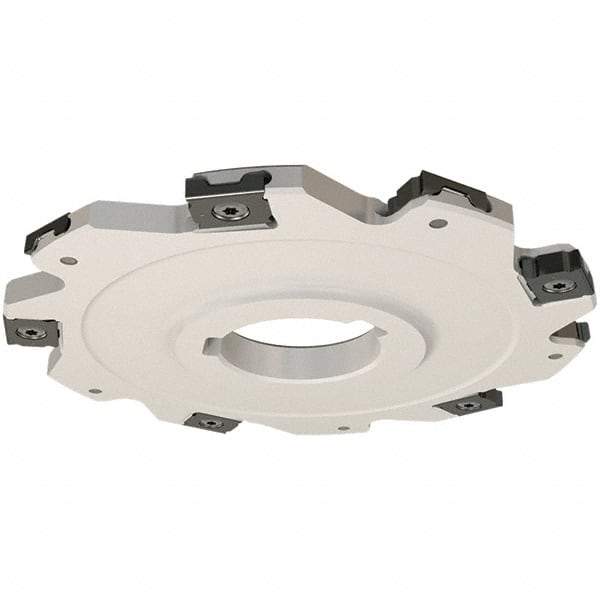

Iscar - Arbor Hole Connection, 0.118" Cutting Width, 27mm Depth of Cut, 100mm Cutter Diam, 27mm Hole Diam, 12 Tooth Indexable Slotting Cutter - SDN Toolholder, LNET Insert, Right Hand Cutting Direction
Item #: 63860282
Brand: Iscar
Model #: 3105031
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 27.00 |
| Cutter Diameter (mm) | 100.00 |
| Hole Diameter (mm) | 27.00 |
| Number of Teeth | 12 |
| Toolholder Style | SDN |
| Series | Mini-TangSlot(SDN-LN08) |
| Insert Style | LNET |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Cutting Width (mm) | 3.00 |
| Hub Diameter (mm) | 42.00 |
| Cutting Radius (Inch) | 1/64 |
| Complete Insert Compatibility1 | LNET 081804-TN-N |
