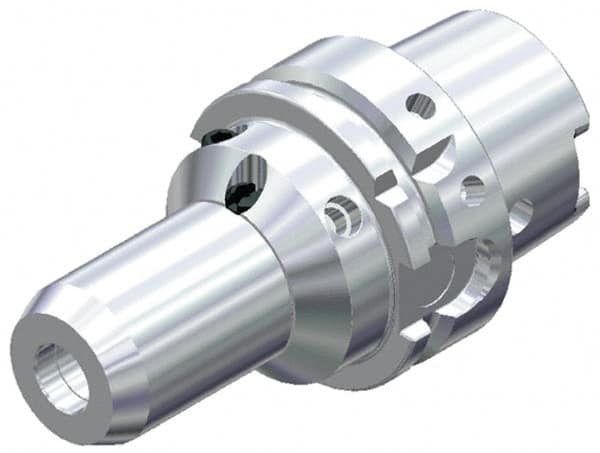

Kennametal - HSK100A Taper Shank, 1/2" Hole Diam, Hydraulic Tool Holder/Chuck - 31.5mm Nose Diam, 95.25mm Projection, 1.42" Clamp Depth, 15,000 RPM, Through Coolant
Item #: 63784946
Brand: Kennametal
Model #: 1246560
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK100A |
| Hole Diameter (Inch) | 1/2 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 12.70 |
| Nose Diameter (Decimal Inch) | 1.2400 |
| Nose Diameter (mm) | 31.50 |
| Projection (Decimal Inch) | 3.7500 |
| Projection (mm) | 95.25 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 1.4200 |
| Overall Length (mm) | 145.29 |
| Overall Length (Decimal Inch) | 5.7200 |
| Balanced to (RPM) | 15000 |
