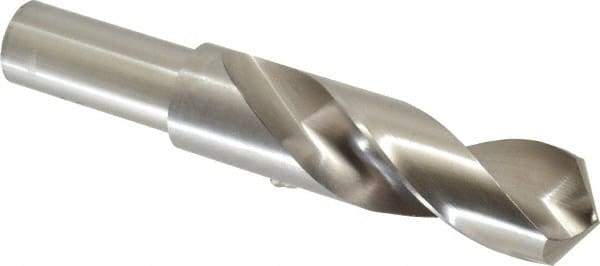

Cleveland - 1-1/4" 118° Spiral Flute High Speed Steel Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 4-3/8" Flute Length, 6-3/4" OAL, Standard Point, Straight Shank
Item #: 63707749
Brand: Cleveland
Model #: C04697
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 1.2500 |
| Drill Bit Size (Inch) | 1-1/4 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 4-3/8 |
| Overall Length (Inch) | 6-3/4 |
| Overall Length (mm) | 171.45 |
| Overall Length (Decimal Inch) | 6.7500 |
| Point Type | Standard |
| Shank Diameter (Inch) | 1 |
| Specification Designation | ANSI |
| Spiral Type | Regular Spiral |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0015 |
| Drill Bit Grade | General Purpose |
| Series/List | 2120 |
