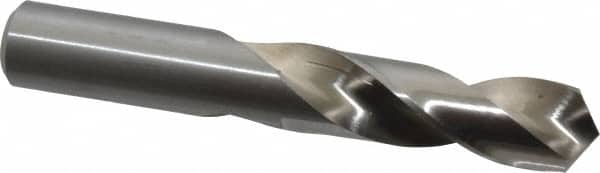

Screw Machine Length Drill Bit: 0.9531″ Dia, 118 °, High Speed Steel Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2120
Item #: 63707616
Brand: Cleveland
Model #: C04663
Product Specifications
| Drill Bit Size (Inch) | 61/64 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.9531 |
| Drill Bit Size (Decimal Inch) | 0.9531 |
| Overall Length (Inch) | 5-7/8 |
| Series | 2120 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Short |
| Shank Length (Inch) | 2 |
| Shank Length (Decimal Inch) | 2.0000 |
| Shank Length (mm) | 50.80 |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0012 in |
| Standards | ASME B94.11M |
| Flute Length (Inch) | 3-7/8 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Specification Designation | ANSI |
