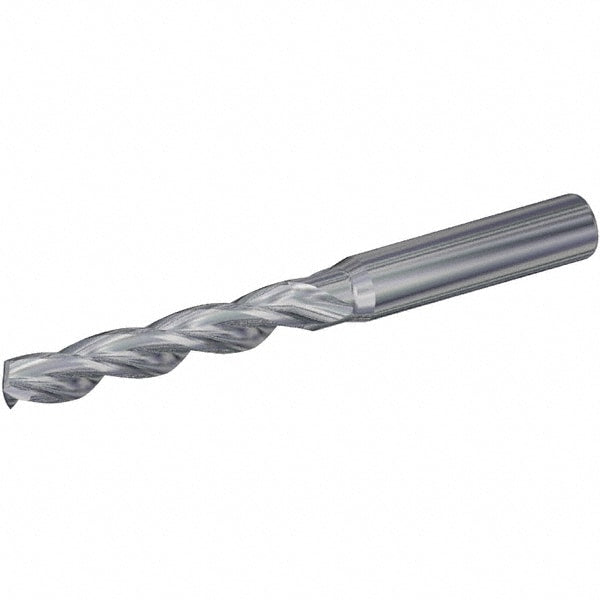

Jobber Drill: 0.3371" Dia, 130 deg Point, Solid Carbide
Item #: 51006542
Brand: Kennametal
Model #: 1790912
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3371 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | TiAlN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Cast Iron |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | S; K; N |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (mm) | 103.00 |
| Overall Length (Decimal Inch) | 4.0550 |
| Spiral Type | Regular |
| Flute Length (mm) | 59.99 |
| Flute Length (Decimal Inch) | 2.3620 |
| Series | KenDrill TF |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 6xD |
| Shank Diameter (Inch) | 3/8 |
| Maximum Drilling Depth (Decimal Inch) | 1.9170 |
| Shank Length (Decimal Inch) | 1.5938 |
| Shank Length (Inch) | 1-19/32 |
| Number of Flats | 0 |
| Drill Point Length (Decimal Inch) | 0.0843 |
| Shank Type | Straight |
| Double Margin | No |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Material Grade | K10 |
| UNSPSC Code | 23241634 |
