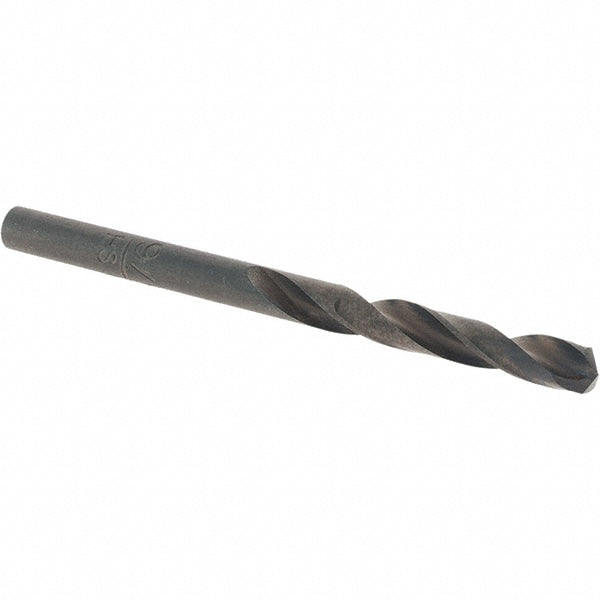

Screw Machine Length Drill Bit: 9/64" Dia, 135 deg Point, High-Speed Steel
Item #: 50956036
Brand: Cle-Line
Model #: C23465
Product Specifications
| Drill Bit Size (Inch) | 9/64 |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Tool Material | HSS |
| Cutting Direction | Right Hand |
| Coating/Finish | Oxide |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | Split Point |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1406 |
| Overall Length (mm) | 49.21 |
| Overall Length (Decimal Inch) | 1.9375 |
| Overall Length (Inch) | 1-15/16 |
| Shank Diameter (mm) | 3.57 |
| Series | 1896 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | Black Oxide |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 25.40 |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Standards | ASME B94.11M |
| Flute Length (Decimal Inch) | 0.9375 |
| Flute Length (Inch) | 15/16 |
| Flute Length (mm) | 23.81 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| UNSPSC Code | 23241635 |
| Drill Bit Size (Inch) | 9/64 |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Tool Material | HSS |
| Cutting Direction | Right Hand |
| Coating/Finish | Oxide |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | Split Point |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1406 |
| Overall Length (mm) | 49.21 |
| Overall Length (Decimal Inch) | 1.9375 |
| Overall Length (Inch) | 1-15/16 |
| Shank Diameter (mm) | 3.57 |
| Series | 1896 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | Black Oxide |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 25.40 |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0007 in |
| Standards | ASME B94.11M |
| Flute Length (Decimal Inch) | 0.9375 |
| Flute Length (Inch) | 15/16 |
| Flute Length (mm) | 23.81 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| UNSPSC Code | 23241635 |
| MSC Part # | 50956036 |
| Mfr Part # | C23465 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
