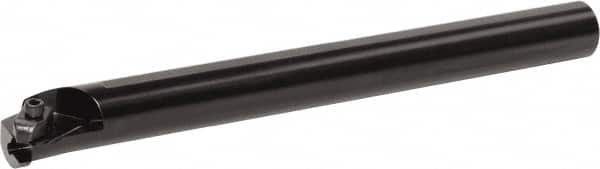

Kyocera - A-KKC, Internal, Right Hand, 0.14" Max Depth of Cut, 0.189 to 0.31" Groove Width, Indexable Grooving Tool Holder - KC.. 2 Insert Compatibility, 0.596" Shank Width, 6" OAL, Through Coolant
Item #: 63571467
Brand: Kyocera
Model #: 8604012
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Internal or External | Internal |
Hand of Holder | Right Hand |
Maximum Depth of Cut (Decimal Inch) | 0.1400 |
Minimum Groove Width (Decimal Inch) | 0.1890 |
Maximum Groove Width (Decimal Inch) | 0.3100 |
Overall Length (Decimal Inch) | 6.0000 |
Toolholder Style | A-KKC |
Insert Compatibility | KC.. 2 |
Shank Width/Diameter (Decimal Inch) | 0.5960 |
Series | A-KKC |
Through Coolant | Coolant Through |
Multi-Use Tool | No |
Insert Holding Method | Clamp or Screw |
Minimum Hole Diameter (Decimal Inch) | 1.0000 |
Maximum Hole Depth (Decimal Inch) | 1.1530 |
Maximum Bore Depth (Decimal Inch) | 1.1530 |
Center to Cutting Edge (Decimal Inch) | 0.5000 |
Head Length (Decimal Inch) | 1.1530 |
Shank Length (Decimal Inch) | 4.8470 |
Manufacturers Catalog Number | A10MKKCR2 |
Height to Shank Top (Decimal Inch) | 0.5960 |
Complete Insert Compatibility | KCG 2; KCGP 2; KCRP-2 |
Minimum Bore Diameter (Decimal Inch) | 1.0000 |
Shank Diameter (Decimal Inch) | 0.6250 |
