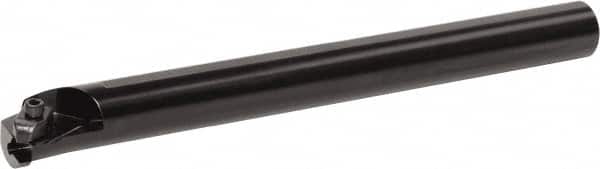

Kyocera - A-KKC, Internal, Right Hand, 0.14" Max Depth of Cut, 0.189 to 0.31" Groove Width, Indexable Grooving Tool Holder - KC.. 3 Insert Compatibility, 12" OAL, Through Coolant
Item #: 63571301
Brand: Kyocera
Model #: 8604019
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1400 |
| Minimum Groove Width (Decimal Inch) | 0.1890 |
| Maximum Groove Width (Decimal Inch) | 0.3100 |
| Overall Length (Decimal Inch) | 12.0000 |
| Toolholder Style | A-KKC |
| Insert Compatibility | KC.. 3 |
| Series | A-KKC |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp or Screw |
| Minimum Hole Diameter (Decimal Inch) | 1.3750 |
| Center to Cutting Edge (Decimal Inch) | 0.6880 |
| Manufacturers Catalog Number | A16TKKCR3 |
| Complete Insert Compatibility | KCG 3; KCGP 3; KCRP-3 |
| Minimum Bore Diameter (Decimal Inch) | 1.3750 |
| Shank Diameter (Decimal Inch) | 1.0000 |
