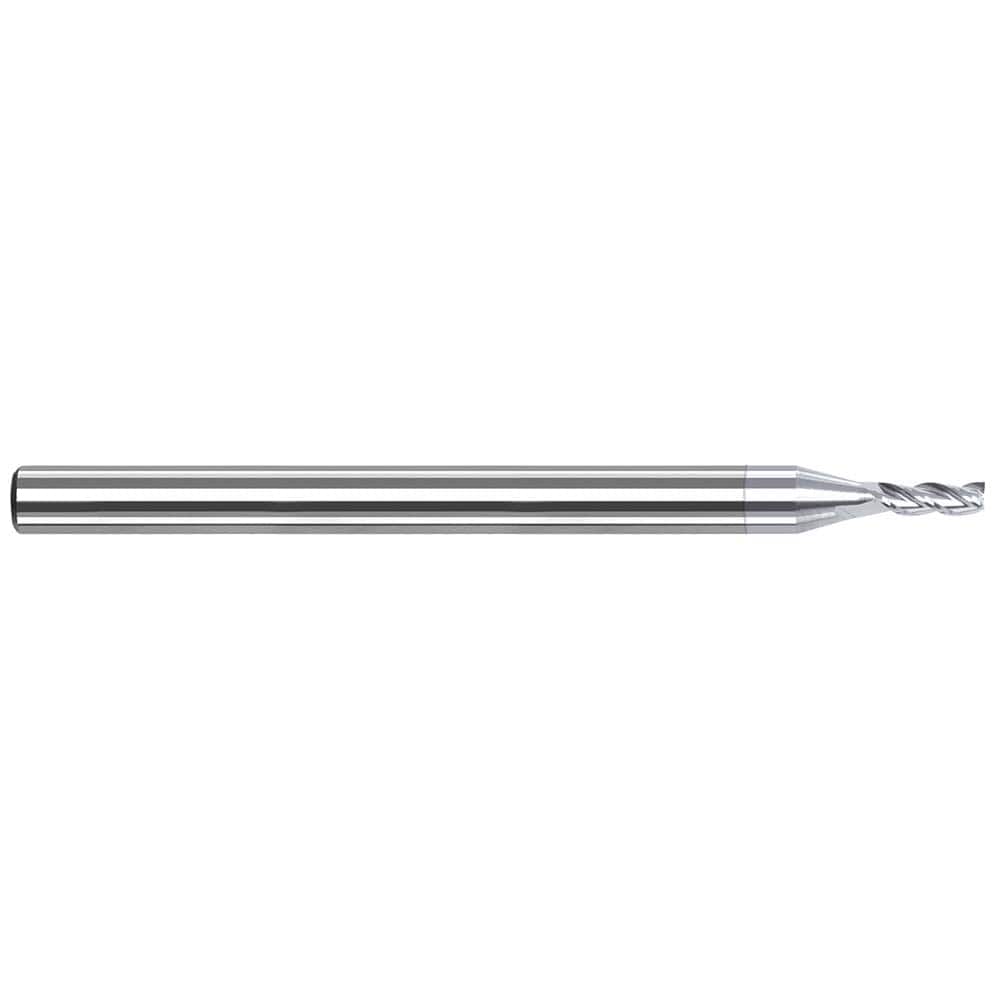

Harvey Tool - Square End Mills; Mill Diameter (Inch): 5/64 ; Mill Diameter (Decimal Inch): 0.0780 ; Length of Cut (Inch): 15/64 ; Length of Cut (Decimal Inch): 0.2340 ; Material: Solid Carbide ; Finish/Coating: TiB2
Item #: 63537278
Brand: Harvey Tool
Model #: 942278-C8
Product Specifications
Square End Mills; Mill Diameter (Inch): 5/64 ; Mill Diameter (Decimal Inch): 0.0780 ; Length of Cut (Inch): 15/64 ; Length of Cut (Decimal Inch): 0.2340 ; Material: Solid Carbide ; Finish/Coating: TiB2
| Mill Diameter (Inch) | 5/64 |
| Mill Diameter (Decimal Inch) | 0.0780 |
| Length of Cut (Inch) | 15/64 |
| Length of Cut (Decimal Inch) | 0.2340 |
| Material | Solid Carbide |
| Finish/Coating | TiB2 |
| Shank Diameter (Inch) | 1/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.50000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 42 |
| Variable Helix | Yes |
| Series/List | Variable Helix End Mills for Aluminum Alloys - Square |
