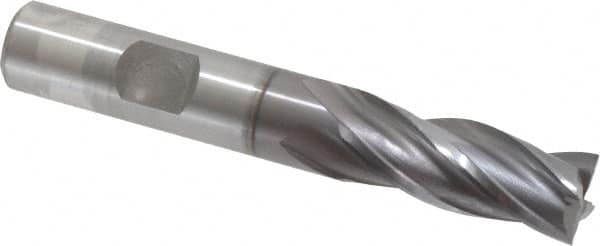

OSG - 1/2", 1-1/4" LOC, 1/2" Shank Diam, 3-1/4" OAL, 4 Flute, Cobalt Square End Mill - Single End, TiCN Finish, 30° Helix, Centercutting, Right Hand Cut, Series 541
Item #: 63526370
Brand: OSG
Model #: 5411108
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material | Cobalt |
| Finish/Coating | TiCN |
| Shank Diameter (Inch) | 1/2 |
| Single or Double End | Single |
| Overall Length (Inch) | 3-1/4 |
| Center Cutting | Center Cutting |
| Cutting Direction | Right Hand |
| Helix Angle | 30.00 |
| Length Type | Regular |
| Material Grade | M42 |
| Chipbreaker | No |
| Series/List | 541 |
