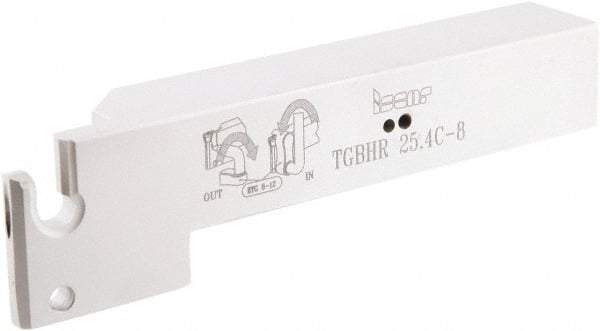

Iscar - TGBH, External, Right Hand, 0.98" Max Depth of Cut, 0.315" Max Groove Width, Indexable Grooving Tool Holder - TAG N 8..C/W/M, TAGB/TAGBA 8.. Insert Compatibility, 1" Shank Height, 1" Shank Width, 5.9" OAL, Through Coolant
Item #: 63510044
Brand: Iscar
Model #: 2801592
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 5.9000 |
| Toolholder Style | TGBH |
| Insert Compatibility | TAG N 8..C/W/M; TAGB/TAGBA 8.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Sumo Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning; Cut-Off |
| Insert Holding Method | Self Clamp |
| Manufacturers Catalog Number | TGBHR 25.4C-8 |
| Toolholder Material | Steel |
