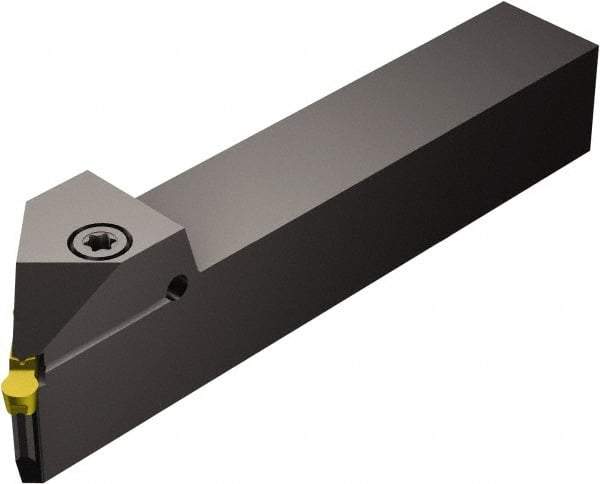

Sandvik Coromant - N123J2-0500-0004-TF, R/LX123..B-045 Left Hand Indexable Profiling Toolholder - 19.05mm Shank Height x 19.05mm Shank Width, 150mm Long, Steel
Item #: 63509012
Brand: Sandvik Coromant
Model #: 5733188
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Rake | Neutral |
| Insert Compatibility | N123J2-0500-0004-TF |
| Toolholder Style | R/LX123..B-045 |
| Series | CoroCut 1-2 |
| Toolholder Material | Steel |
| Through Coolant | No |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Center to Cutting Edge (mm) | 24.40 |
| Center to Cutting Edge (Decimal Inch) | 0.9606 |
| Head Length (mm) | 48.30 |
| Head Length (Decimal Inch) | 1.9016 |
| Complete Insert Compatibility | N123J2-0500-0004-TF |
