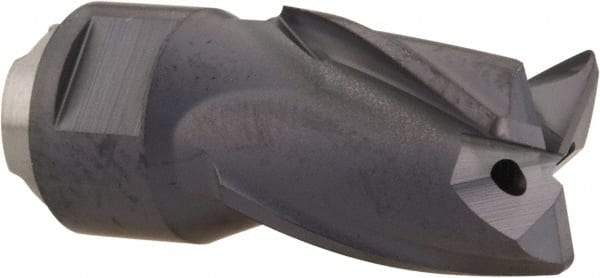

Seco - MP10 M03 Grade MP3000 Carbide Milling Tip Insert - TiAlN Finish, 3 Flutes, 10mm Cutting Diam, 12mm Depth of Cut, 21mm Extension, 0.0315" Cnr Rad
Item #: 63473995
Brand: Seco
Model #: 51711
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Milling Tip Style | MP10 |
| Material | Carbide |
| Cutting Diameter (mm) | 10.00 |
| Material Grade | C5 |
| Manufacturer's Grade | MP3000 |
| Depth of Cut (mm) | 12.00 |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Chipbreaker | M03 |
| Extension From Holder (mm) | 21.00 |
| Style | MP10-10012R08Z3 |
