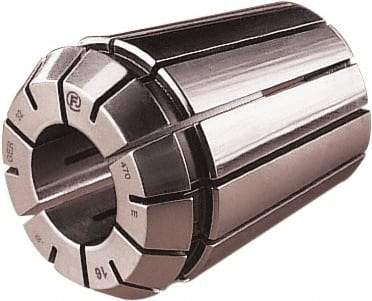

Seco - 4mm ER11 Collet - 0.0006" TIR, 0.433" OAL, 0.452" Overall Diam
Item #: 63306278
Brand: Seco
Model #: 22764
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER11 |
| Size Range (mm) | 4.00 |
| Size (Decimal Inch) | 0.1575 |
| TIR (Decimal Inch) | 0.000600 |
| Maximum Collet Capacity (mm) | 4.00 |
| Overall Length (Decimal Inch) | 0.4330 |
| Overall Diameter (Decimal Inch) | 0.4520 |
| PSC Code | 5136 |
