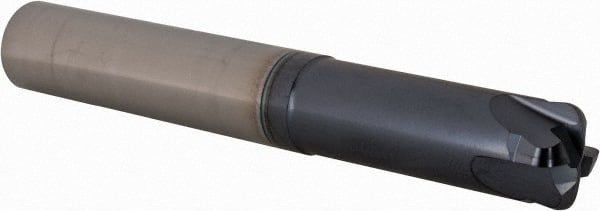

Corner Radius End Mill: 0.4724″ Dia, 0.0236″ LOC, 0.0972″ Radius, 4 Flutes, Solid Carbide Helix, TiAlN Coated, Corner Radius End, Centercutting
Item #: 63194286
Brand: Iscar
Model #: 5622472
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Corner Radius (Decimal Inch) | 0.0972 |
| Corner Radius (mm) | 2.47 |
| Length of Cut (mm) | 0.60 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Long |
| Flute Type | Straight |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 12.00 |
| Overall Length (mm) | 83.00 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Cutting Direction | Right Hand |
| Material Grade | Ultra Fine Grain |
| Series | Solid Feed Mill |
| Single Or Double End | Single |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0236 |
