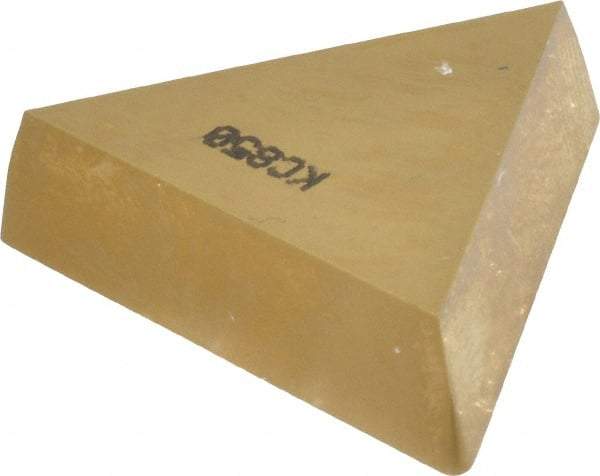

Kennametal - TPG542 Grade KC850 Carbide Turning Insert - TiC/TiCN/TiN Finish, 60° Triangle, 5/8" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 63169973
Brand: Kennametal
Model #: 1183323
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPG |
| Insert Size | 542 |
| Material | Carbide |
| Length (mm) | 27.50 |
| Length (Decimal Inch) | 1.0827 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | KC850 |
| Coating | TiC/TiCN/TiN |
| Material Grade | C5/C6 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M; K |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | KENDEX |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
