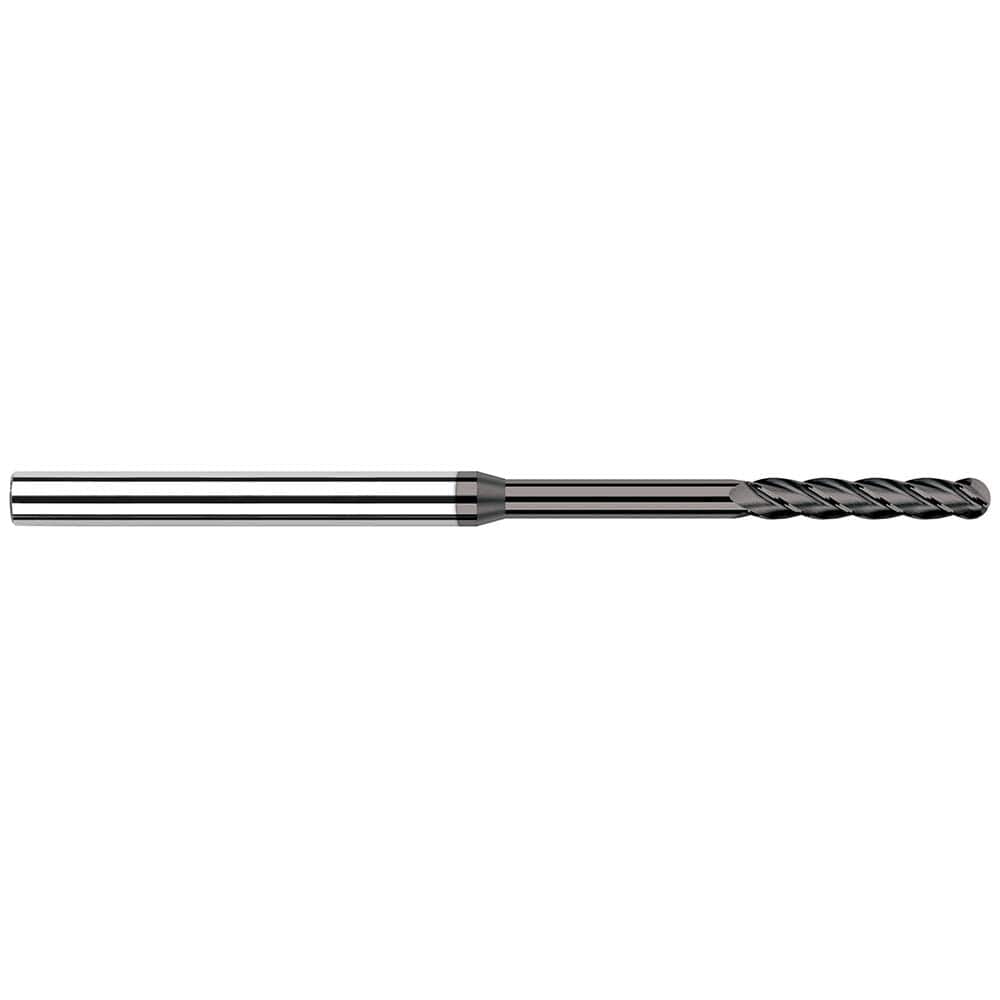

Harvey Tool - 3/16" Diam, 1" LOC, 4 Flute Solid Carbide Ball End Mill
Item #: 63125561
Brand: Harvey Tool
Model #: 36612
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Material | Solid Carbide |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.00000 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Finish/Coating | CVD |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Helix | No |
| Reach Length (Inch) | 1-7/8 |
| Reach Length (Decimal Inch) | 1.8750 |
| Series/List | Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Ball - Long Reach, Long Flute |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
