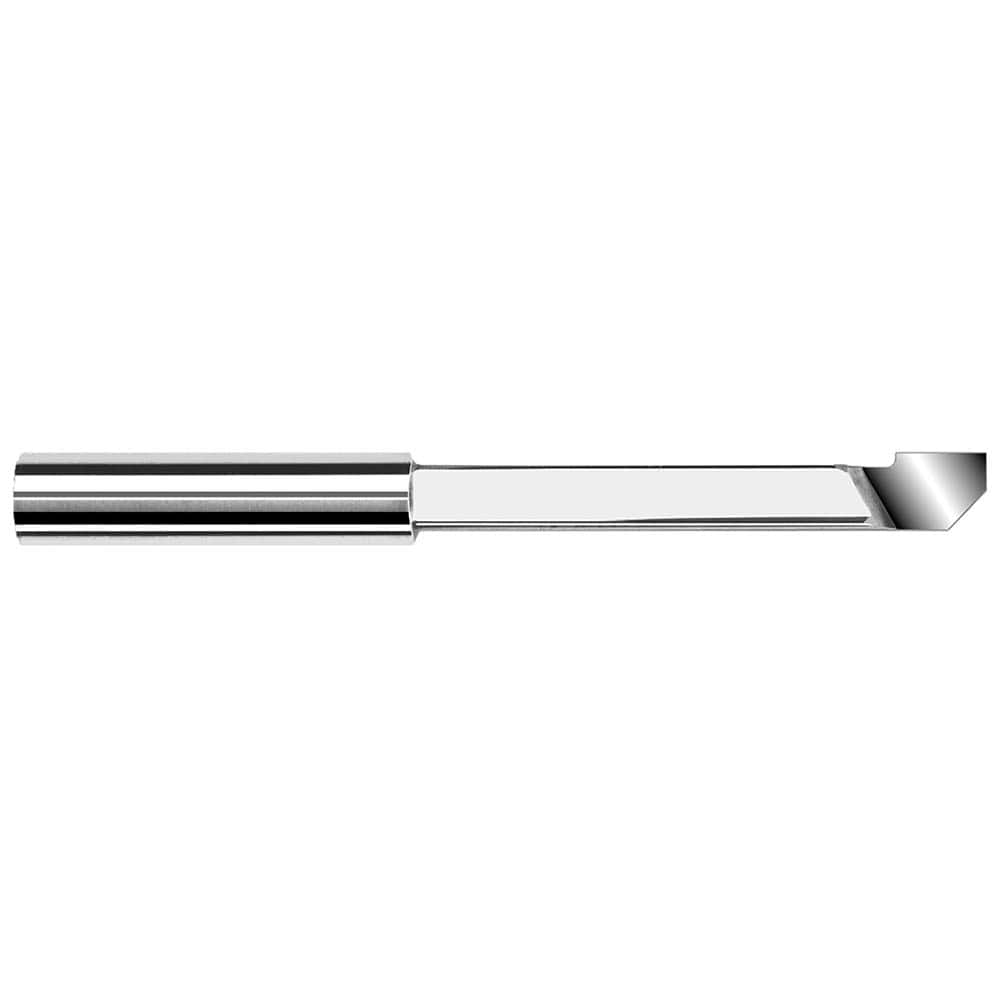

Harvey Tool - Boring Bars; Minimum Bore Diameter (Decimal Inch): 0.1020 ; Minimum Bore Diameter (mm): 2.600 ; Maximum Bore Depth (Decimal Inch): 0.5625 ; Maximum Bore Depth (Inch): 9/16 ; Material: Solid Carbide ; Boring Bar Type: Boring
Item #: 63114177
Brand: Harvey Tool
Model #: 29100
Product Specifications
Boring Bars; Minimum Bore Diameter (Decimal Inch): 0.1020 ; Minimum Bore Diameter (mm): 2.600 ; Maximum Bore Depth (Decimal Inch): 0.5625 ; Maximum Bore Depth (Inch): 9/16 ; Material: Solid Carbide ; Boring Bar Type: Boring
| Minimum Bore Diameter (Decimal Inch) | 0.1020 |
| Minimum Bore Diameter (mm) | 2.600 |
| Maximum Bore Depth (Decimal Inch) | 0.5625 |
| Maximum Bore Depth (Inch) | 9/16 |
| Material | Solid Carbide |
| Boring Bar Type | Boring |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Decimal Inch) | 1.50000 |
| Overall Length (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
